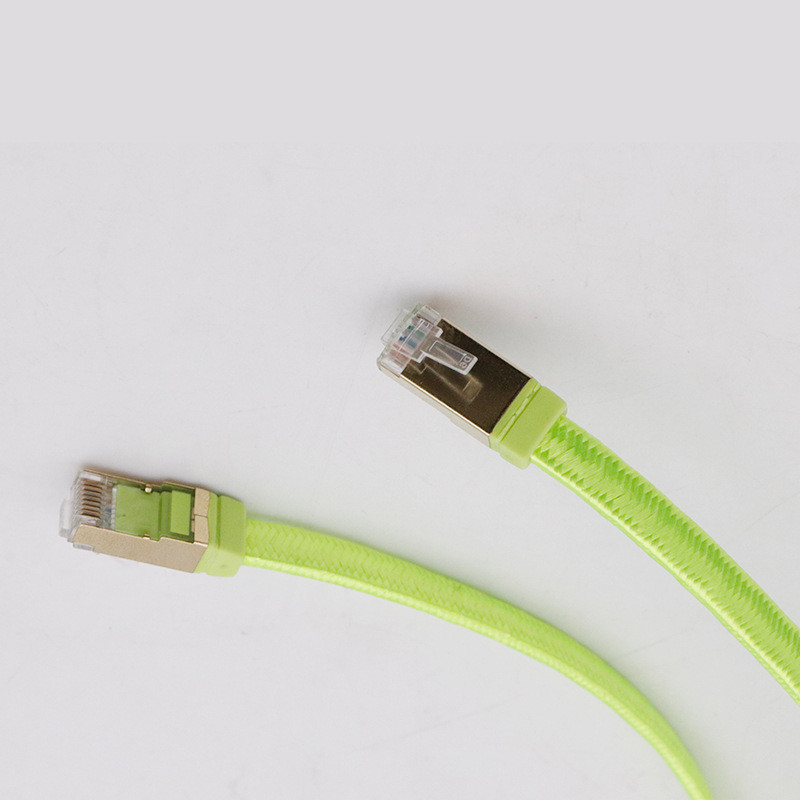

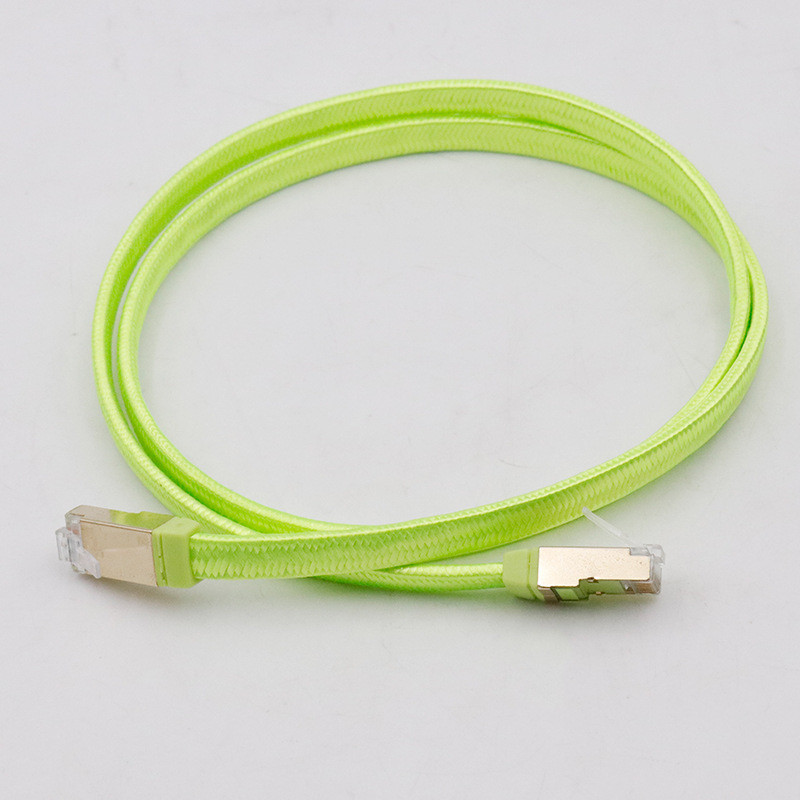

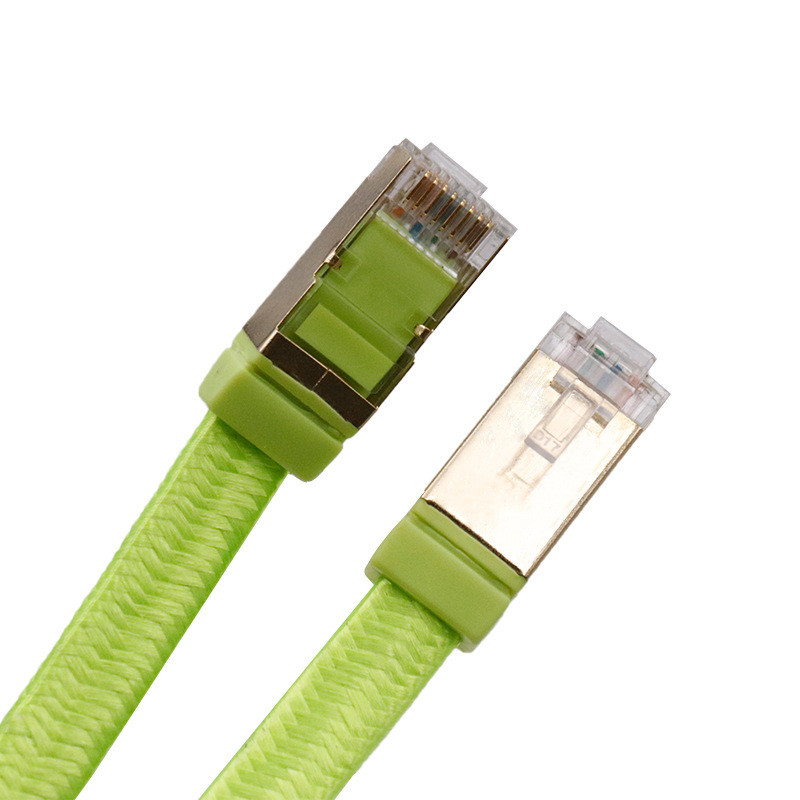

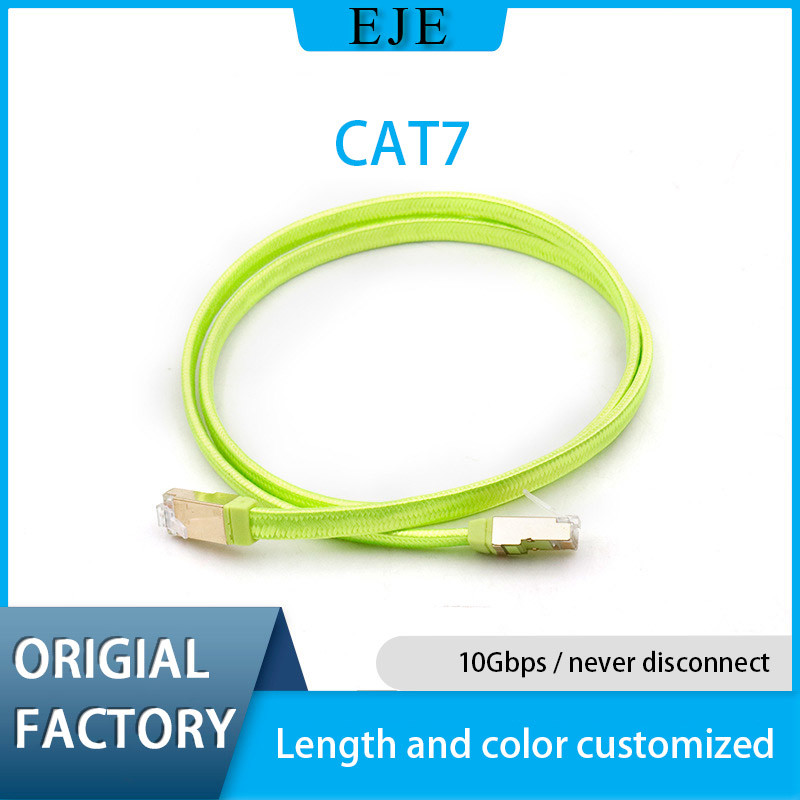

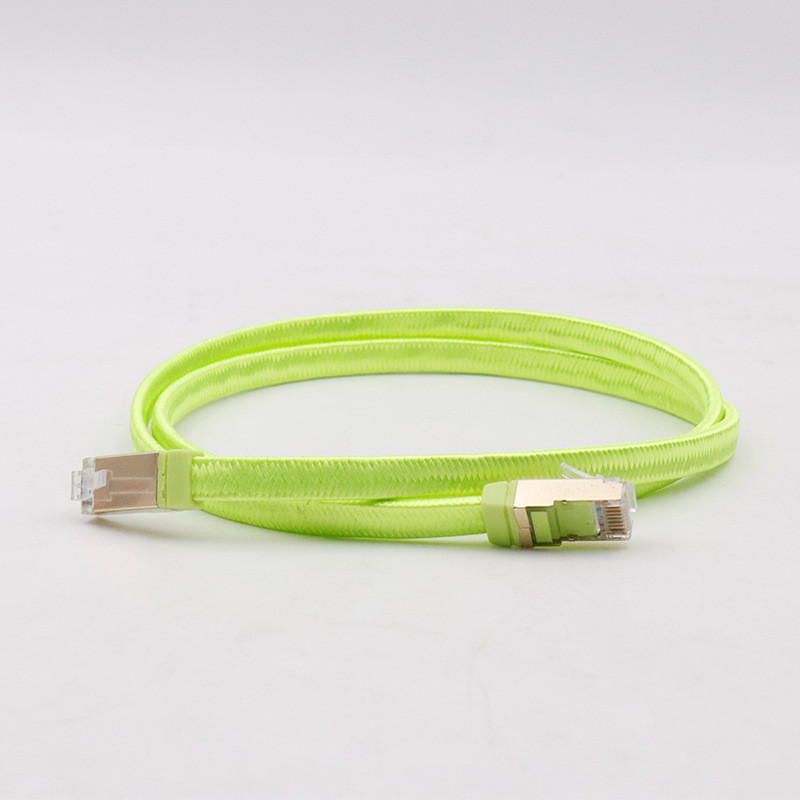

Green Flat Cat 7 Ethernet Patch Cable Sftp 10gbit/S 600mhz 1m-10m

Place of Origin Jiangxi, China
Brand Name EJE
Certification UL/RoHS/REACH/ANATEL
Minimum Order Quantity 5000 pcs
Price usd0.76-0.98
Packaging Details bag and carton(50mm*33mm*25mm), around 350,000 pcs/1350 cartons per container(40'HQ)
Delivery Time 20-25days
Payment Terms T/T
Supply Ability 15,000,000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Ethernet Network Cable Length 1m/1.5m/2m/3m/5m/10m
Cable Type Network Cable Category CAT.7
Option Color Red, Purple,Green, Yellow, Blue,Orange, Gray,Black Connector Type RJ45 8P8C
Data Transfer Rate 10Gbps Bandwidth Frequency 600MHz
Material Copper Outer Jacket PVC
Package Bag/Carton Shielding Aluminum Foil + Al-Mg Braid
Highlight

Cat 7 Ethernet Patch Cable 10gbit

,

Green 10gb ethernet cable cat7

,

10m Cat 7 Ethernet Patch Cable

Leave a Message
Product Description

GREEN FLAT Cat.7 SFTP 10Gbit/s 600MHz Shielded Ethernet Cable Form-Skin PE & Aluminum Foil Insulation



The Cat7 cable is a high-end patch cord that provides the core infrastructure for a wired 10 Gigabit Ethernet setup.It is an 8-core shielded wire, each pair has a shield (usually Al Foil Shield), and then there is a shield outside the 8 cores (usually a metal braided wire mesh shield), the interface is the same as RJ-45. Total shield (usually metal braided wire mesh shielding) + wire pair shielding (usually metal foil shielding) CAT 7 wire S/FTP Cat.7 (HSYVP-7) Maximum transmission frequency 600MHz

In 2002, the Cat7 cabling standard was approved, allowing 10 Gigabit Ethernet Cat7 cables to be routed in copper. The maximum length of the Cat.7 is the same as that of the Cat5e, Cat6 and Cat6A, with a maximum distance of 328 feet (100 meters).

Cat.7 wire has four pairs of shielded twisted pair copper wire and integral cable shield. This helps it meet stringent standards for signal loss over distance and ensures that Cat7 cables are better protected against performance degradation that can result from crosstalk and electromagnetic interference (EMI).



Green Flat Cat 7 Ethernet Patch Cable Sftp 10gbit/S 600mhz 1m-10m 0

Features&Specification:

Conductor Material 23/24/26AWG Copper
Conductor Cover Material Form-Skin PE
Core Diameter 0.95mm
Insulation Aluminum Foil
Shielding Type SFTP
Connector Type RJ45 8P8C
Connection Standard TIA/EIA-568-B
Connector 3-50u Gold Plated RJ45
Connector Material PC
Transmission Speed 10Gbps
Transmission Frequency 600MHZ
Twisted Wire Mode 8 Pairs Twisted
Cover Material PVC
External Cable Diameter 6mm
Wire Shape Round
Operating Temperature -20°C - +75°C
Option Color Red, Purple,Green, Yellow, Blue,Orange, Gray,Black
Lenth of Cable 0.5m-50m for option
Certificate UL/RoHS/REACH/ANATEL



Applications:

Cat7 Ethernet cables (LAN cables) are used to connect modems, hubs, and individual computers on networks of all shapes and sizes.

Cat7 cables can withstand a variety of hazards, including extreme temperates, urUV/moisture exposure, and direct contact with different chemicals and oils.In addition to enthusiast-grade gaming setups, Cat7 cables are becoming increasingly popular with home users in various Cat7LAN cable networks and connection setups.

Support and Services:

The technical support and service for the Network Cable CAT.7 product includes the following:

  • Installation and setup assistance
  • Firmware updates
  • Compatibility testing
  • Replacement parts
  • Product warranties




Packing and Shipping:

Network cable CAT.6A is usually packed in cartons. A standard carton size is usually 50" x 33" x 25" or larger.For a 40 HQ container, it could load with around 320000 pcs of 1~1.5m long cables.
The packages are sealed with waterproof tape and marked with company logo or other information to prevent them from being opened or tampered with.
Shipping method : by air/sea.





Green Flat Cat 7 Ethernet Patch Cable Sftp 10gbit/S 600mhz 1m-10m 1




FAQ:

Q1: Are you a factory or trading company?
A1: We are an original manufacturer for over 20 years

Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in Anfu Jiangxi, but marketing and R&D department are in Shenzhen, Guangdong. I`d like you to visit our company in Shenzhen first as we could pick you up at Shenzhen international airport, and then we arrange the journey to Anfu factory.

Q3: May I take samples first?
A3: Yes! You are welcome to place sample order to test our superior quality and services before bulk order.

Q4: What is your Warranty?
A4: All the products for CAT.6 will have 24 months Warranty.

Q5:What payment method do you accept?
A5:T/T(Bank transfer)

Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us.

Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? How long do you need to prepare my goods?
A8: Delivery will be arranged within 20-25 days after payment, and arrive you within about 1 month via sea shipping.

Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, EMS to door. Bulk order cargo will be delivered to your local port by sea.





Green Flat Cat 7 Ethernet Patch Cable Sftp 10gbit/S 600mhz 1m-10m 2
